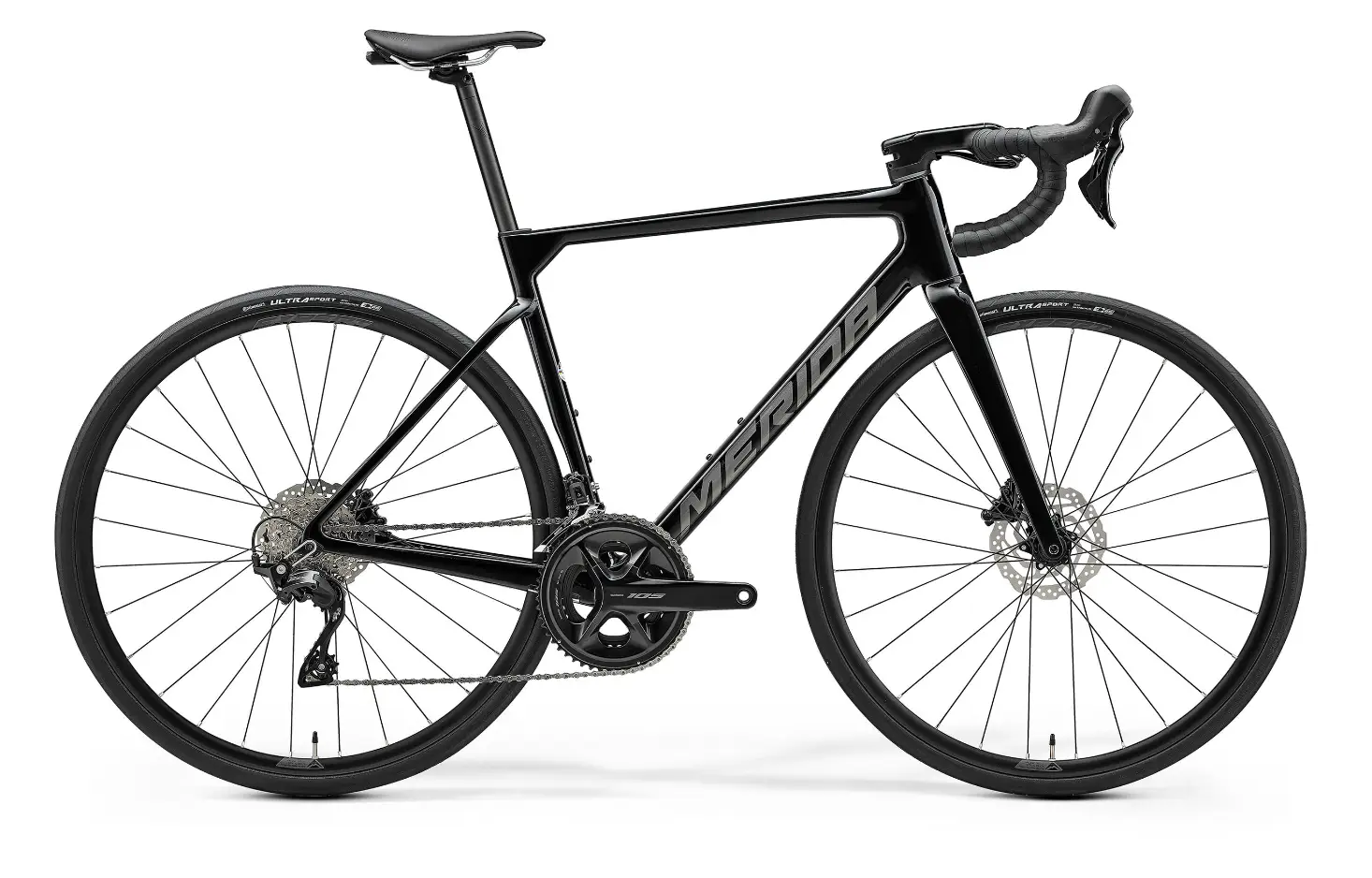

MERIDA SCULTURA 4000 RACE

מפרט:

• material: carbon
• 700x30C max. wheelsize
• 100×12/ 142x12mm axle standard
• Pressfit 86,5

frame size 3XS, XXS, XS, S, M, L, XL

color METALLIC BLACK (GUNMETAL GREY)

fork SCULTURA CF3 disc

• material: carbon
• 700x30C max. wheelsize

brakes Shimano 105

• Hydraulic disc

rotors Shimano RT10

• 160mm

brake lever Shimano 105

headset MERIDA TEAM SL

• VP-MRBHB (OP-203 neck)

handlebar MERIDA EXPERT SLII

• material: aluminium
• 380mm (3XS-XXS-XS)
• 400mm (S-M-L-XL)

handlebar stem MERIDA EXPERT SL 2PII

• material: aluminium
• 9° stem angle
• 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL),

grip MERIDA ROAD Expert

derailleur (f) Shimano 105

derailleur (r) Shimano 105

• GS

shifters Shimano 105 disc

seat post MERIDA EXPERT CC

• 27.2mm diameter
• 15mm setback
• Carbon

seat clamp MERIDA EXPERT

saddle MERIDA EXPERT SL

• 6% recycled and 23% nature material
• V-mount
• incl. MERIDA minitool

chain Shimano M6100-12

crank Shimano 105 R7100

• 52-36 teeth
• 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),

freewheel Shimano 105 R7101

• 11-34 teeth
• 12 speed

bottom bracket Shimano SM-BB72-41B

• Pressfit 86.5

hubs Shimano HB-TC500 / Shimano HB-TC500-HL

• 100x12mm width front hub
• 28 spoke holes
• Centerlock
• 12-142mm width rear hub
• 28 spoke holes
• Centerlock

rim MERIDA EXPERT SL

• 17mm inner width
• 22mm height
• material: aluminium
• Tubeless ready (tubeless tape and valves not included)

tyre front Continental Ultra Sport III

• 700x28C
• fold

tyre rear Continental Ultra Sport III

• 700x28C
• fold

axles MERIDA EXPERT SL

• including removable lever
• 6/4mm allen key

spokes Double Butted Black stainless

approx. weight 8.8 kg

• weighed at frame size M
• Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.

max. weight 120 kg
